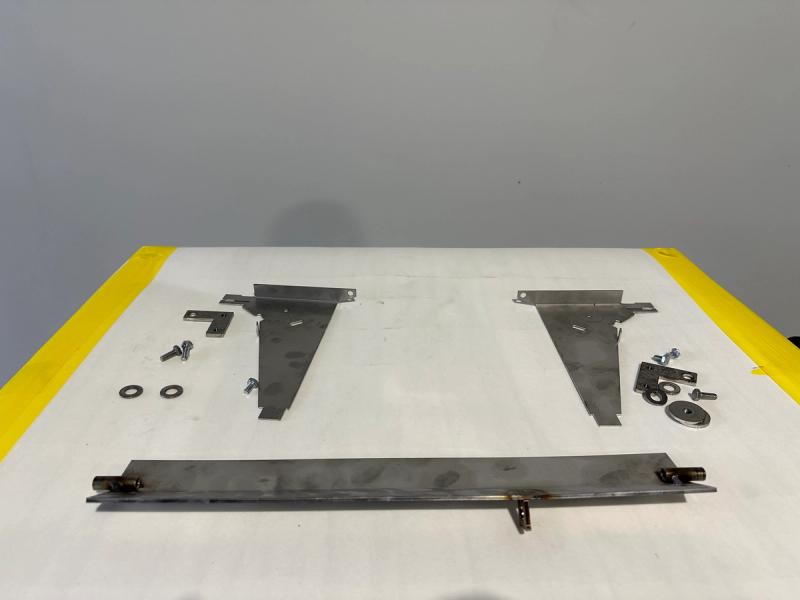

prepare the parts, screws and the bolts
Spaarklep
- steps
- video
- 1

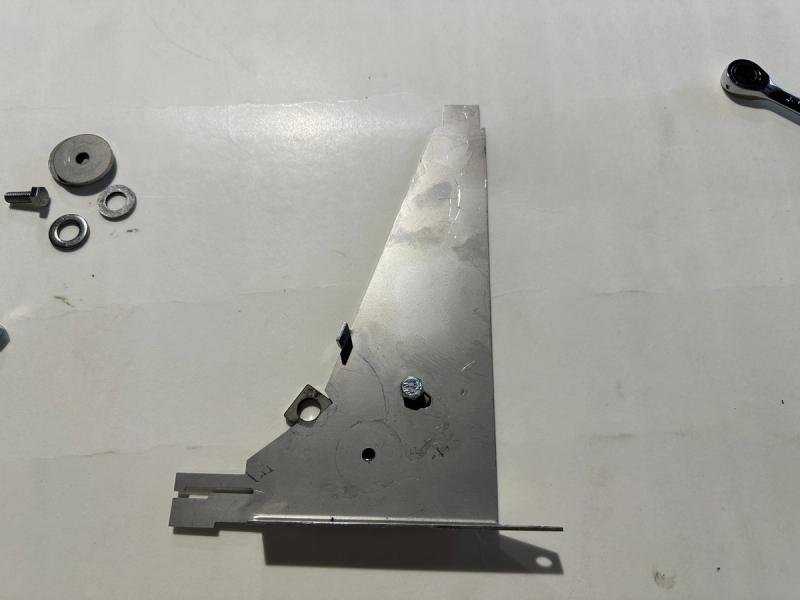

- 2
first put the L shaped metal on the outside of the left part and use a M6x10 from the inside

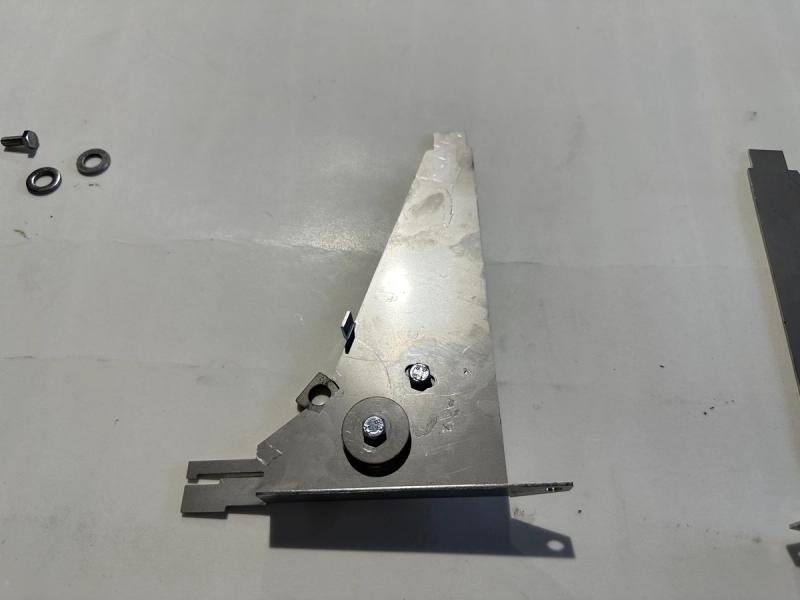

- 3
put the big round shaped ring in to the middle and use a screw M6x16

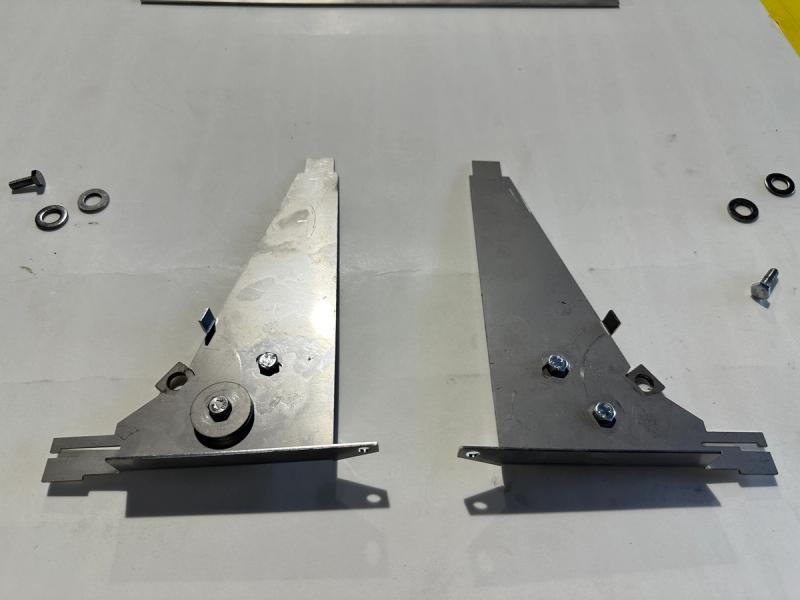

- 4
repeat it with the other side, but only use M6x10 (without the big ring)

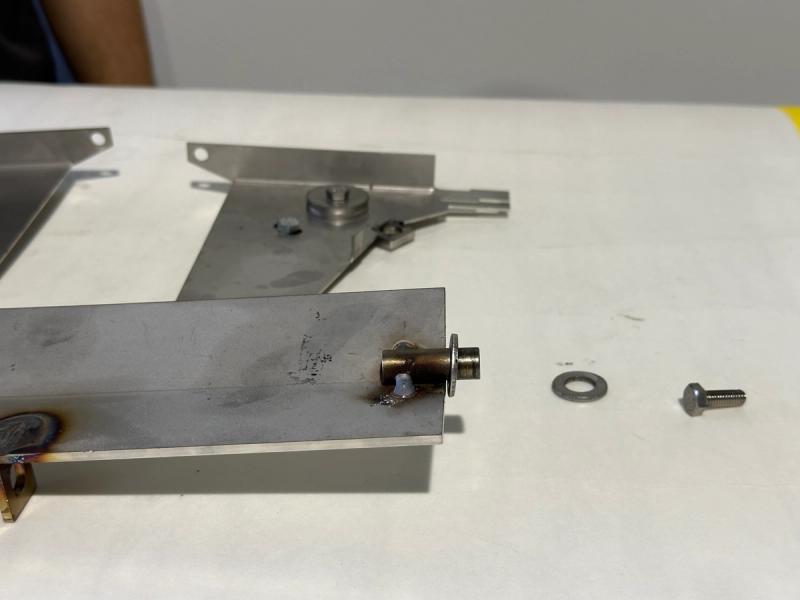

- 5
put the ring 8,4 as you see it on the picture

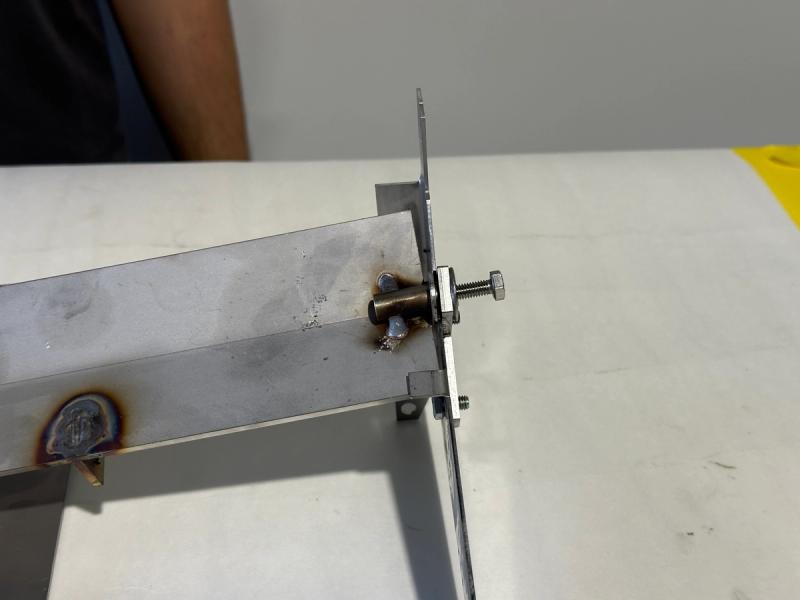

- 6
place the earlier made part and use a ring 8,4 and a screw M6x12, then repeat the process on the other side
